PSC & Datacenter
Site Specifications
- Area: 25,000 square feet with around 5000 square feet sellable space
- Load Bearing Capacity:2 Tons/Rittal Rack
- Clear Height: 2.7 M
- Seismic Zone: 2
- Separate Elevators for movement of Servers and Racks
- Loading Dock: Loading Dock and staging area available
Security
- Five Zone Security
- 24x7 Security Officers and Armed Guards
- CCTV and Recorders
- Card System
- Motion Detection
- Biometric Hand Geometry Readers
- Datacenter Control Systems
- Water Leak Detection System & Rodent Repellent System

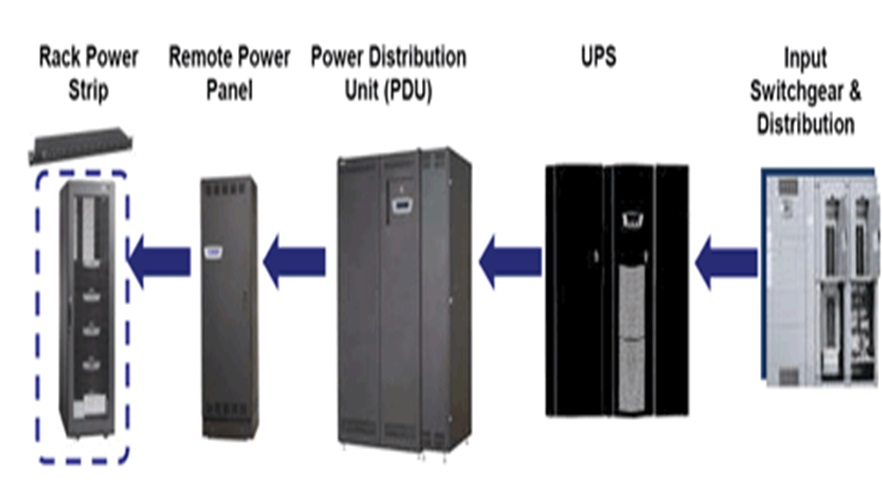

Power Systems
- Power Sources : 1 MVA on 33 KVA Line
- Type: Dual Active
- Generator: N+1
- Fuel Tanks: 5000 Liters of Diesel available with
- up to 48 hours of backup
- UPS: N+1 with complete integration with BMS and
- 4 Hours of backup power on full load

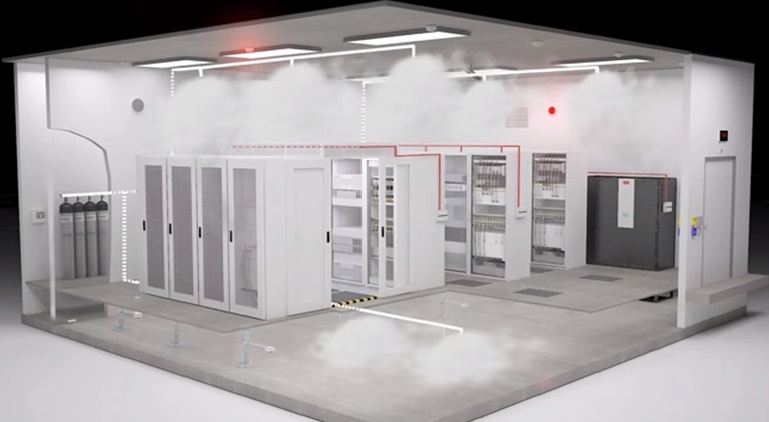

Fire & Water Safety
- Dual alarmed, heat and smoke rate of rise detection and VESDA system
- Fire Detection VESDA, 3D Sensors
- Fire Rating 2 Hours
- Fire Suppression FM200
- Fire Alarm System
- Smoke Detectors

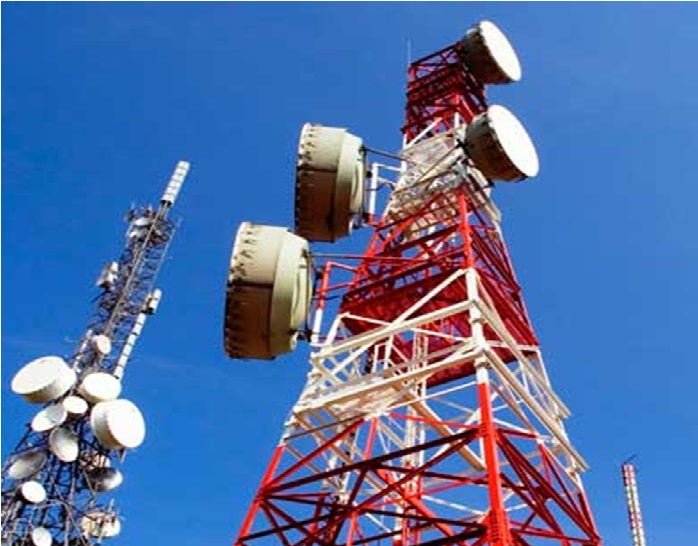

Telecommunication & Infrastructure
- Carrier Neutral Facility
- Providers on Fiber Optic ring based Network
Cooling Systems

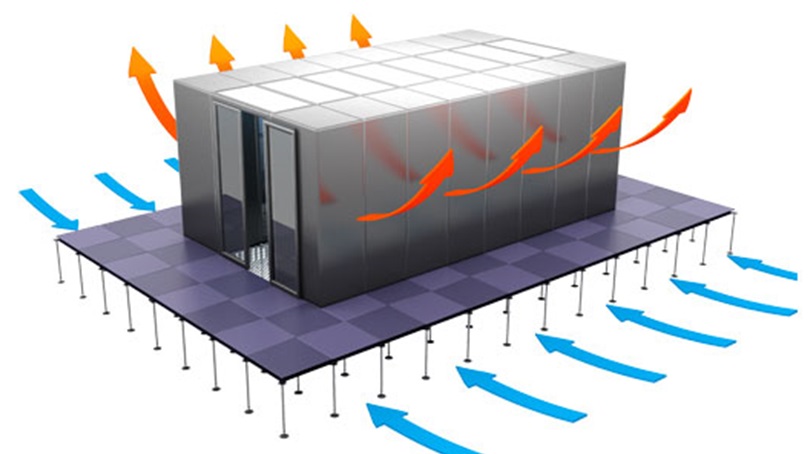

- Raised floor with ceiling based return plenum 200 Tons+ (expandable to 500 Tons) of AC Cooling through multiple redundant Precision Air Conditioning (PAC) units Intelligent sensors with Complete integration with BMS
- Temperature PAC : 20 +/- 1 Degree Celsius
- Fully redundant Unfair Precision Air Cooling Systems with N+1 Redundancy
- Humidity 50 +/- 10 degree Celsius
- Hot aisle/cold aisle design with chimney to return plenum

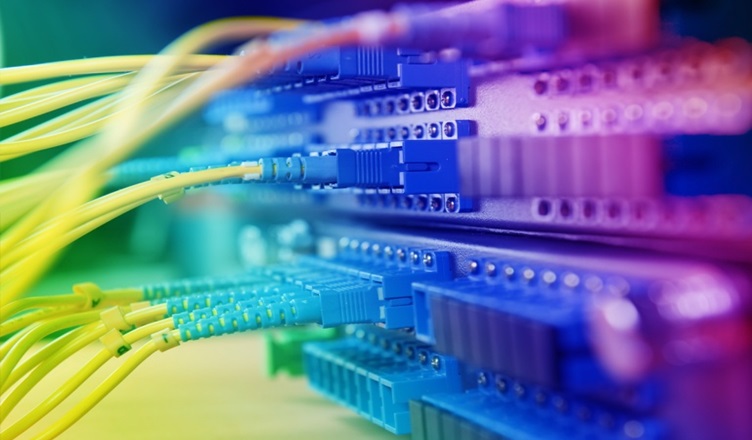

Cabling & Networking
- Proprietary Network architecture with sophisticated routing technologies to
- Boost overall network performance
- Gigabit port connectivity
- Fiber Optic Network
Cooling Systems
- Database Management
- O/S Management
- Firewall Management
- Backup Management
- IDS / IPS
- Management
- DR & BCP Solutions
